ROI Configuration Usage Tutorial

This section introduces how to set the roi parameters of an event camera through API interfaces to adapt to custom scenarios.

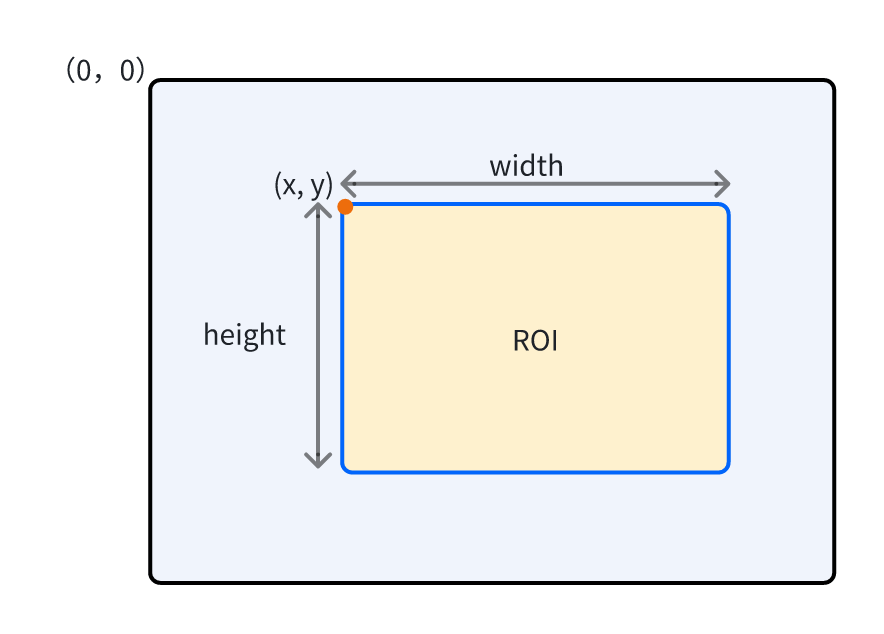

Introduction to ROI

ROI Parameter	Description	Default Value	Minimum Value	Maximum Value	Notes
x	The top-left X-coordinate of ROI	0	0	1280	This parameter determines the starting position of the ROI region in the horizontal direction.
y	The top-left Y-coordinate of ROI	0	0	720	This parameter determines the starting position of the ROI region in the vertical direction.
width	Width of ROI	1280	0	1280	Defines the length of the ROI region in the horizontal direction. You must ensure that (x + width) <= 1280 to stay within the image boundary.
height	Height of ROI	720	0	720	Defines the length of the ROI region in the vertical direction. Ensure that (y + height) <= 720 to avoid going out of image range.

ROI API Sample

Use the dvsense::DvsCamera::getTool API interface in the DvsCamera class to obtain a configuration object related to bias settings:

#include "DvsenseDriver/camera/DvsCamera.hpp"
std::shared_ptr<dvsense::CameraTool> roi_tool = device_->getTool(dvsense::ToolType::TOOL_ROI);

After obtaining the bias operation pointer, you can configure the parameters according to the information provided in Introduction to ROI. Here’s an example:

int value;
bool ret = roi_tool->setParam("x", 10);
bool ret = roi_tool->getParam("x", value);

bool ret = roi_tool->setParam("y", 10);
bool ret = roi_tool->getParam("y", value);

bool ret = roi_tool->setParam("width", 100);
bool ret = roi_tool->getParam("width", value);

bool ret = roi_tool->setParam("height", 100);
bool ret = roi_tool->getParam("height", value);
